eurocol

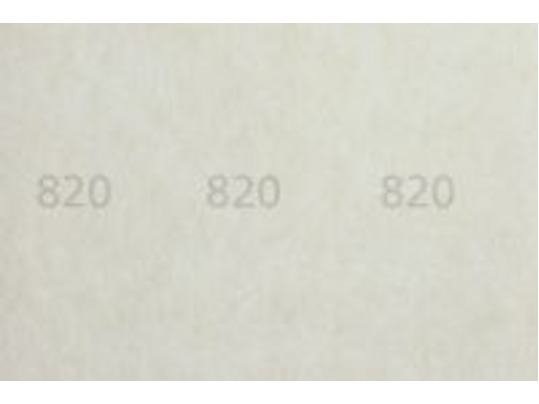

820 DIM FLOOR

820

Sound insulating declutching mat.

  • pdf-product-specification.pdf

    pdf-product-specification.pdf

Product Typification

Sound insulating declutching mat.
Basis : PU-based mineral mat.

Product advantages:


  • Sound insulating
  • Bridges cracks
  • Dimension stable
  • Very simple application
  • Suitable for underfloor heating systems
  • Low VOC-emission
  • Moisture-resistance

Performances

Size : 70 x 100 cm.
Thickness material : 0,4 cm.
Weight : 5.1 kg/m².
Contact noise insulation : Depending on the construction and application an improvement of Ico with max. 16 dB insulation (according to DIN-EN-ISO 140-8) or 5 dB (according to NEN-EN-ISO 140-8) can be reached.*
Warmth resistance : 0.036 m² K/W.
Warmth conduction : 0.11 W/mK.
Adhesion : Adhesion strength according to DIN 53 292: 0.34 N/mm².
Consumption :
Flammability : B2.

Application

820 DIM Floor is a subfloor system for reducing contact noise. Because of the small system height of less than 4 mm it is an excellent solution for renovation projects. The system has been tested in accordance with DIN-EN-ISO 140-8. 820 DIM Floor is also suitable as a declutching mat. Subfloors that are subjected to light splitting (max. 2 mm), due to shrinkage of the subfloor or “expansion of the building”, are declutched of the tile floor. In this way cracks in the tile floor will be provided. Apply in combination with 542 Eurofix Tack Plus (dry areas) or 705 Watertight Tile Adhesive (wet areas).

Working Process

Tools : Stanley-knife.
Application temperature :

* The mentioned values have been established in our laboratory and must be considered as guidelines in view of possible variations in climatic circumstances, subfloor compositions and layer thickness.

Consumption:



User manual:

Working method as a sound insulating mat:

  • Place the mats along the borders of the subfloor, which are provided with 802 Foam Strips. To prevent sound leaks apply the foam strips also against the tiling.
  • Apply 542 Eurofix Tack Plus on the subfloor with a lambswool roller. Apply the mats into the wet 542 Eurofix Tack Plus.
  • Apply the mats stretching bond to one another (print at the upper side). Cut the mats with a stanley-knife.
  • To prevent that the tile adhesive will cause a sound leak with the subfloor by the seams or borders, finish the seams and mat/foam strip connection with 685 Eurocoat (drying time approx. 1 hour).
  • Apply the tiles with 705 Watertight Tile Adhesive (wet areas) or 709 Superflex (spreader 6x6 of 8x8 mm). When fixing in wet areas first apply and impervious layer of 705 Watertight Tile Adhesive of approx. 3 mm. After drying fix the tiles. Fix light-coloured tiles such as natural stone with 711 Uniflex or 720 Unicol (both suitable for application in wet and dry areas).
  • Grout tiles after minimum 24 hours with 706 Special Grout WT (wet areas).
  • Cut the foam strips with a knife and finish with a skirting or joint sealant.
  • Laboratory research has proved that application of 820 DIM Floor, including tile completion can improve the impact-sound insulation with ÄLW +16 dB (DIN-EN-ISO 140-8) or ÄLlin+5 dB (NEN-EN-ISO 140-8). Although in practice the height of the improvement depends on the subfloor combination and condition. Therefore Forbo Eurocol gives no guarantee on the final achieved sound reduction.

Working method as a declutching mat:

  • Application as mentioned above. Apply the mats tight to one another; it is not necessary to finish the seams and borders with 685 Eurocoat.




Environment and health

Hazard Class : None.
Safety and environment : Safety data sheets of Forbo Eurocol products according to EEG-guideline 91/155.


Articles

ArticleDefinitionPackagingEAN-code
820DIM FloorMat 70 x 100 cm8 710345 828208
