eurocol

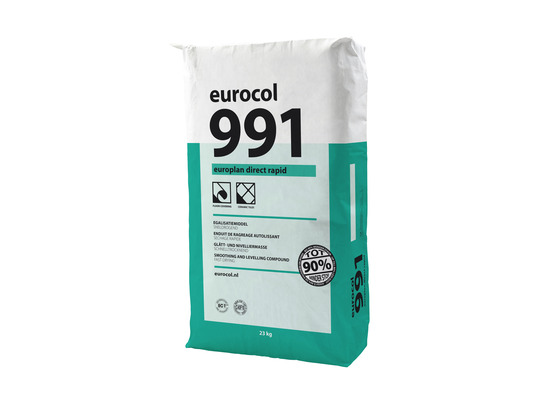

991 EUROPLAN DIRECT RAPID

991

Self-smoothing, very high quality and fast drying levelling compound for stony subfloors. Usually direct levelling without primer. Layer thickness up to 20 mm. Dust-reduced product **.

  • 991-ec 1 plus licence uk.pdf

    991-ec 1 plus licence uk.pdf

  • epdfeica- 991 europlan direct rapid-uk.pdf

    epdfeica- 991 europlan direct rapid-uk.pdf

  • dop-declaration-uk.pdf

    dop-declaration-uk.pdf

  • pdf-product-specification.pdf

    pdf-product-specification.pdf

  • 991-safety data sheet uk.pdf

    991-safety data sheet uk.pdf

Product Typification

Self-smoothing, very high quality and fast drying levelling compound for stony subfloors.
Basis : Cement-powder with additives and a high synthetic binder content, to be mixed with water.
Colour : Grey.
Consistency : Powder.

Product advantages:
  • Quickly ready for laying, very high-quality, universal, low-stress setting, self-levelling compound, cement-based.
  • For very heavy duty use.
  • Can be used in most applications without primer.
  • For levelling especially critical substrates such as waterproof, firmly bonded adhesive residues, mineral substrates, ceramic tiles, natural stone coverings, terrazzo, as well as standard mastic asphalt.
  • Can also be used with primer on new mineral substrates, on screwed wood-based panels (V100 P4 - P7, OSB 2 - 4).
  • Can be used in layer thicknesses up to 20 mm, on mastic asphalt up to 5 mm.
  • For subsequent floor covering work and laying of parquet.
  • Pumpable.
  • Squeegeeable.
  • Dust-reduced **.
  • Walkable after approx. 60 minutes.
  • Ready for laying after approx. 1.5 - 3 hours.
  • Favourable spreading capacity
  • Excellent flow
  • High compression strength
  • The product can be used on underfloor heating and is suitable for use with chair castors according to DIN EN 12529.
  • For indoor use.
  • Very low emission laying material, certified according to EMICODE EC 1 Plus.

Performances

Adhesion : After 28 days 3,6 N/mm².
Bending Strength : According to NEN-EN 13892-2:2002: after 28 days ≥ 12 N/mm².
Bureau Wheelchair resistance : From 1 mm layer thickness.
Classification : CE: DIN EN 13813: CT-C40-F10.
Compressive strength : According to NEN-EN 13892-2:2002: after 28 days ≥ 42 N/mm².
Consumption : Approx. 1.5 kg/m² per mm layer thickness.
Flammability : Non-flammable.
Passableness : Approx 1 - 1,5 hour at (18 - 20) °C.*
Special quality : Quick to walk on and ready for laying, dust reduced **, can usually be used without primer. Can also be used under parquet flooring.

Application

Application:

For levelling stony subfloors (interior use) in layers up to 20 mm. At layers up to 2 mm, a surrounding temperature 18° - 20° C and a relative humidity of < 70%, the applied levelling compound layer is ready for the installation of linoleum, needlefelt, carpet, PVC- and rubber floor covering after 1.5 - 3 hours. For the installation of linoleum, needlefelt and carpet the residual moisture percentage in the subfloor may not be measured above 3.5 CM-%. For installation of PVC- and rubber floor covering is this respectively 2.5 and 2.0 CM-%. Install parquet and cork after at least 12 hours. In this case the residual moisture percentage may not be measured above 2.5 CM-%.

If applying by pump:

Consult pump supplier, ensure the pump is suitable for all types of levelling compounds. Pumping with a too high mixing rate can cause an insufficient flow of the levelling compound.


Working Process

Layer thickness : Maximum 20 mm.
Tools : Trowel or notched squeegee in combination with a spiked roller.
Mixing ratio : Add 23 kg of 991 Europlan Direct Rapid to 5 - 5.5 litres of water.
Mixing ratio : Add 25 kg of 991 Europlan Direct Rapid to 6,0 litres of water.
Waiting time : Approx 3 minutes.
Processing time : Use within 15 minutes after mixing.*
Storage : Store cool and dry.
Shelf Life : 6 months, in unopened packaging.
Drying : At 18 - 20 °C and a relative humidity < 70% the applied levelling compound layer is ready for the installation of linoleum, needlefelt, carpet, PVC and rubber after 1.5 - 3 hours. For the Installation of parquet and corc the drying time is 12 hrs.*
Cleaner : Water.
Sensitive to frost : No.
Remarks :

For layer thicknesses over 10 mm, on moisture-sensitive (e.g. calcium sulphate screeds) or unstable substrates, Eurocol reactive primers, e.g. 042 Euroblock Turbo or 021 Euroblock Reno LE should be used.

For layer thicknesses over 10 mm, on screwed wood-based panels, Eurocol reactive primers, e.g. 042 Euroblock Turbo or 021 Euroblock Reno LE should be used.

Technical information and safety data sheets of other laying materials and floorings/parquet must be observed!

Apply flooring to the filled area within the next few days!
For absorbent subfloors keep a minimum layer thickness of 2 mm, for non-absorbent subfloors a minimum layer thickness of 3 mm.
When used under parquet, a minimum layer thickness of 3 mm must be observed.

In case of multi-layer application, the layer thickness of the second application must not exceed the layer thickness of the first application.

After application of levelling compound.

  • Fresh surfaces should be protected against direct sun light, draughts, high temperature (above +30°C), rain and frost.
  • To obtain the recommended long term technical performance of product, after finishing levelling works installation of floor covering should be done within the shortest period of time, which depends on product’s drying time within 3 to 7 days, otherwise the surface should be protected with a suitable coating or covering.
Not suitable on floating dry screed elements or floating wood-based panels.
The readiness for laying is dependent on the thickness of the layer and depends in particular on the climatic conditions on site.

Wear protective glasses and gloves.
If the adhesive or installation material comes into contact with your eyes, wash out immediately with plenty of water and consult an ophthalmologist.
Protect your hands with waterproof, robust gloves.
Wear long trousers.
Avoid prolonged skin contact with the adhesive or installation material. Thoroughly clean affected skin parts with water immediately.
The longer fresh adhesive or installation material remains on your skin, the greater the risk of serious skin damage.
Keep children away from fresh adhesive or installation material.

**) Observe the corresponding notes on dust reduction on the packaging. EMICODE, for more information visit www.emicode.com. For levelling work in connection with subsequent parquet adhesives using Eurocol 1K or 2K parquet adhesives, only use Eurocol 048 Europrimer Plus or reactive Eurocol primers.

* The mentioned values have been established in our laboratory and must be considered as guidelines in view of possible variations in climatic circumstances, subfloor compositions and layer thickness.

Consumption:
Approx. 1.5 kg/m² per mm layer thickness.

Substrate:
  • 991 Europlan Direct Rapid can be applied on any type of stony subfloor that is rigid and has a good tensile and compression strength. The subfloor should also be clean, permanently dry and free from grease and dirt, according to the requirements of BS 8203 or DIN 18 365/DIN 18356.
  • In most cases it is not necessary to use a primer.
  • Degrease smooth and impervious subfloors (tile floors, granito, terrazzo etc.) with 014 Euroclean/891 Euroclean Basic and and dry well. For a layer thickness of 4 mm or more, prime the non-absorbent substrate with 044 Europrimer Multi/044-1 Europrimer Multi Plus.
  • Absorbent subfloors (sand/cement screeds) can be levelled without a primer.
  • Prime very strong porous subfloors with 044 Europrimer Multi/044-1 Europrimer Multi Plus, 099 Dispersion Primer or 049 Europrimer ABS with a foam roller.
  • Prime moisture sensitive subfloors (e.g. anhydrite, magnesite, water-soluble adhesive residues etc.) with 021 Euroblock Reno/021 Euroblock Reno LE, 042 Eurobloick Turbo or 026 Euroblock Multi.
  • In case of asphalt floors and bituminous substrates contact our technical department.
  • Fill cracks and deep damages with 905 Europlan Fill or 945 Europlan Solid/940 Europlan Quick.
  • After hardening prime 905 Europlan Fill or 945 Europlan Solid with 044 Europrimer Multi/044-1 Europrimer Multi Plus or 049 Europrimer ABS.
  • Wooden floorboards must be of a good waterproof quality. During mixing of the 23 kg levelling mortar, add 250 g 811 Reno fibers. Minimum layer thickness must be 3 mm. Don`t devide the levelling mortar with a notched squeegee. Seams must be sealed up with 900 Europlan Reno or a suitable acrylic sealant.
  • Appropriately dimensioned Eurocol edge strips are to be used for rising building components.
  • Fix cracks/seams in the subfloor with 021 Euroblock Reno LE in combination with 063 Eurotape and 846 Quartzsand or 808 Eurojoint Connector in combination with 021 Euroblock Reno LE. Alternatively with Europlan 913 Silicate sealing compound.
  • Level anhydrite floors with 925 Europlan Alphy Direct, 924 Europlan Hybrid or 920 Europlan Alphy.
  • In advance always seek our technical data sheets. In doubt about the application ask for technical advice.


User manual:
  • Add 23 kg of 991 Europlan Direct Rapid to 5 - 5.5 litres of cool and clean tap water.
  • Add 25 kg of 991 Europlan Direct Rapid to 6 litres of cool and clean tap water.
  • Stir thoroughly, using an electric stirrer (Eurocol no. 855), to a smooth and homogeneous mixture.
  • Wait for approx. 3 minutes and stir the mortar once again, with a low rpm.
  • Apply the mortar within 15 minutes on the floor with a trowel or notched squeegee.
  • When pumping adjust the mixing-unit in such way that per 23 kg of 991 Europlan Direct Rapid 5 – 5.5 litres (25 kg/6,0 litres) of cool and clean tap water will be added
  • Protect fresh levelling compound layers against draft and direct sunlight.
  • Under normal circumstances the layer is passable after approx. 1 - 1.5 hours. At a layer thickness of 2 mm and a temperature of 18 - 20 °C, the levelling compound layer is ready for the installation of a floor covering after 1.5 - 3 hours, provided that the moisture content does not cross 3.5 CM-%.
  • Higher temperatures will accelerate and lower temperatures will slow down the application and drying time of 991 Europlan Direct Rapid.
  • For extended information about the safety precautions we refer to the safety data sheet on our website www.eurocol.nl.

Working conditions:
Required surrounding temperature : 18 - 23 °C.
Temperature for material and subfloor : min. 15° - max. 20 ºC.
Relative humidity : 40-70%.

Underfloor heating systems:
991 Europlan Direct Rapid can be applied on underfloor heating systems. The startprotocol of the floorheating needs to be completly executed in accordance with the directives of the supplier. Turn off the heater 24 hours before application; do not heat again until at least 24 hours after installation, in steps of maximum 5 °C water temperature per day.





Quality and guarantee

Environment and health

GISCODE : ZP1 Cementitious products, low chromate.
LEED : VOC 0 g/l, meets: IEQ Credit 4.1
DGNB : VOC 0 %, quality level: 4
Hazard Class : Observe notes in the safety data sheet/label!
Safety and environment : Safety data sheets of Forbo Eurocol products according to EEG-guideline 91/155. Wear protective gloves and safety glasses! Keep out of reach of children. Do not eat, drink or smoke while processing the product. Only give completely empty containers for recycling. Material residues can be disposed of as household waste.
MSDS : For extensive information about safety and environment we refer to our website www.eurocol.nl.
Substances causing allergy : Contains Cement, portland, chemicals, flue dust. May produce an allergic reaction.


Articles

ArticleDefinitionPackagingEAN-codeShipping unit
991Europlan Direct Rapid 23 kg bag8 710345 991117 42/pallet
991Europlan Direct Rapid 25 kg bag 4 026956 11551942/pallet (**) Made in Germany
