eurocol
028 EUROBLOCK RAPID

028

2-Componenten epoxy primer - DPM. Damp proofing without moisture limit. Water-free. Very low emissions. Fast setting.

  • pdf-product-specification.pdf

    pdf-product-specification.pdf

  • licence_028-rapid_ec1plus_2021_uk.pdf

    licence_028-rapid_ec1plus_2021_uk.pdf

Product Typification

TODO
Basis : Component A: epoxy resin. Component B: amines
Colour : Component A: transparent. Component B: bluish
Consistency : Liquid.

Product advantages:
  • Fast setting (approx 5 hrs.) 2-component epoxy resin for blocking non-pressing residual moisture in cement screed and concrete.
  • For strengthening surface edge zones. Suitable as bonding layer on mastic asphalt, ceramic tiles, wood-based panels or as a moisture protecting layer of moisture sensitive subfloors.
  • To cover fixed, water-soluble adhesive residues, for the production of epoxy mortars in combination with Eurocol 846 Europlan Sand/847 Europlan Sand fine.
  • For blocking non-residual moisture in unheated cement screeds without limiting residual moisture.
  • For indoor use only.
  • Very low emission certified EMICODE EC 1 Plus.

Performances

Consumption : depending on the absorbency and surface structure, approximately 300-500g/m² per coat.
Curing : Per coating at 20 °C after it can withstand foot traffic for further processing after 5 hours.*
Flammability : Non-flammable.
Frost resistance : Yes.
Special quality : Damp proof membrane without limit. Fast setting.
Specific weight : 1.1 kg/l (mixture).

Application

Application:
  • for blocking non-pressing residual moisture in cement screed and concrete without limitation of residual moisture,
  • for strengthening surface edge zones.
  • Suitable as bonding layer on mastic asphalt, ceramic tiles, wood-based panels,
  • suitable as a moisture protecting layer of moisture sensitive subfloors, to cover fixed, water-soluble adhesive residues,
  • for the production of epoxy mortars.

Working Process

Tools : Lambswool roller.
Mixing ratio : 1,8 : 1 (l) volume, 3,3 : 1.7 (kg) weight
Waiting time : 5-15 hours.
Application temperature : 3 degrees above the dew point temperature.
Processing time : Use within 30 minutes after mixing.*
Curing : Per coating at 20 °C after it can withstand foot traffic for further processing after 5 hours.*
Storage : Store cool and free from frost.
Shelf Life : Approx 24 Months, in unopened packaging. Do not mix partial portions.
Drying : At 20 °C, 5 hours per coat.*
Cleaner : 815 Euroclean HandClean, 358 ToolCleaner.
Frost-proof : Yes.
Remarks :

Technical information and safety data sheets of any laying materials and floorings/parquet used must be followed and the processing conditions must be observed!
No building barrier measures according to DIN 18195, therefore not applicable in case of pressing, constantly rising humidity and with vapour diffusion.

EMICODE, for further information see www.emicode.com.


* The mentioned values have been established in our laboratory and must be considered as guidelines in view of possible variations in climatic circumstances, subfloor compositions and layer thickness.

Consumption:
depending on the absorbency and surface structure, approximately 300-500g/m² per coat.

Substrate:
  • The substrate must be pressure- and tension-resistant, free of cracks and dust, even and free of layers that reduce adhesion.
    Adhesion-reducing layers, old material residues must be removed by suitable mechanical measures in accordance with the specifications of DIN 18365/DIN 18356.
    Old fixed floors, such as ceramic tiles, terrazzo, stone floors, must be thoroughly cleaned and sanded matt after drying.
  • Smoothed concrete floors, cement screeds and vacuum concrete are to be shot-blasted.
  • Cracks or joints (except structural expansion joints) are to be closed with Eurocol Europlan 913 Silicate sealing compound.
  • In case of defects, objections are to be reported in writing.


User manual:

Before use, temper the product according to the processing conditions.

  • Add comp. B to comp. A, therefore cut through the synthetic cap and bottom of component B with a screwdriver. Thereafter unlock the packaging, in this way the hardener will easily penetrate into the resin.
  • The hardener component must be completely emptied into the resin component and mixed homogeneously with a suitable stirrer for approx. 5 minutes, also in the wall and bottom areas of the containers. Immediately decant into a clean container and mix again.
  • Apply the mixture immediately with a lambswool roller. Avoid puddles.
  • On strong porous subfloors as well as application as a DPM apply after 5 - 15 hours a second coat.
  • To avoid adhesion problems of levelling compounds sprinkle the last coat always with 846 Quartzsand. As a DPM sprinkle the second coat.
  • After setting the primer remove excess 846 Quartzsand with a broom or industrial vacuum cleaner.
  • Lower temperatures < 10 °C will increase the finale bond strength significantly.

Use as reaction mortar:
By adding Eurocol 846 Europlan Sand and/or 847 Europlan Sand fine (depending on the desired layer thickness and viscosity), the product can be used to produce a reaction mortar as a levelling mortar to stable filling mortar (mixing ratio mass% 1 : 0.8 to 1 : 9 - resin : sand). The freshly applied reaction mortar must be sanded in the same way as a primer.

It is advantageous if the produced mortar is applied to the freshly applied primer, wet-in-wet. The flanks of adjacent screeds should also be primed.

Working conditions:
Required surrounding temperature : min. 18°C.
Temperature for material and subfloor : min. 15°.
Relative humidity : 35 -75%.

Pay attention to BG Chemical information leaflet M023 “working with Polyester and epoxy resins”, DGUV Information 201-062 "EP resins in the construction industry" and BGR227 work with epoxy resins.
When using as a moisture barrier, make sure there is enough ventilation at skirting and behind cupboards.
Only mix complete bucket contents!





Quality and guarantee

Environment and health

GISCODE : RE30
LEED : VOC 0,31 g/l, meets: IEQ Credit 4.1
DGNB : VOC 0,03 %, quality level: 4
Hazard Class : Product contains hazardous ingredients in the resin and hardener. Please observe the notes in the Safety data sheet!
Safety and environment : Safety data sheets of Forbo Eurocol products according to EEG-guideline 91/155. Keep out of reach of children. Do not eat, drink or smoke while processing the product. Only give completely empty containers for recycling. Bound material residues can be disposed of as household waste.
MSDS : For detailed information about the safety measures please refer to the safety information sheet on our website www.eurocol.nl.
Substances causing allergy : Contains epoxy constituents. May produce an allergic reaction.


Articles

articelproductnamepackagingshipping unit

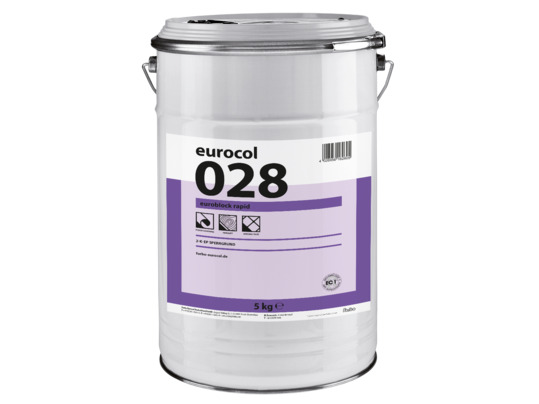

028Euroblock Rapidtin combi pack à 5 kg60/pallet
