eurocol
808 EUROJOINT CONNECTOR

808

For strengthening cracks in subfloors.

  • pdf-product-specification.pdf

    pdf-product-specification.pdf

Product Typification

For strengthening cracks in subfloors.

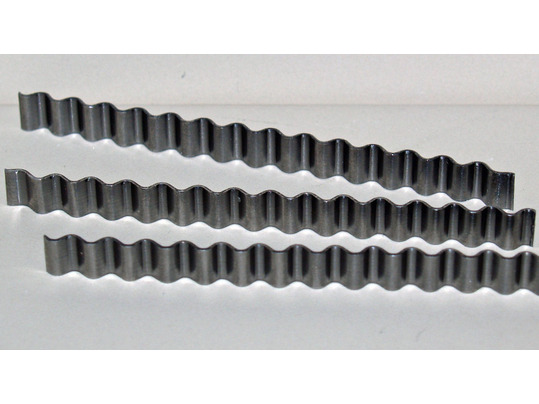

Basis : Corrugated metal strip measuring 75 mm x6 mm.
Colour : Bare metal.

Product advantages:

Strengthens/repairs cracked subfloors:

  • For concrete floors
  • For sand-cement screeds
  • For anhydrite floors

Performances

Consumption : Apply every 30-40 cm.
Flammability : Non-flammable.

Application

Application:

First strengthening/repairing cracks in a subfloor with 808 Eurojoint Connector in combination with 021 Euroblock Reno LE prior to levelling the floor, greatly reduces the risk of the crack showing and/or the creation of so-called mole tunnels in the floor finish.


Picture 1:

Picture 2:


Working Process

Shelf Life : It can be kept indefinitely if stored in a dry location and at a normal temperature whilst still in the original, closed packaging.
Remarks :
Do not close cracks in expansion joints.
To close joints in mastic asphalt, use elastic filling compound. E.g. Eurocol 910 Europlan PU Duo.
Rework poorly sanded areas of the filling compound. Consult our application technology department.

* The mentioned values have been established in our laboratory and must be considered as guidelines in view of possible variations in climatic circumstances, subfloor compositions and layer thickness.

Consumption:
Apply every 30-40 cm.

User manual:
  • If necessary, grind the crack in the floor using an angle grinder.
  • Make cuts perpendicular to the crack every 30-40 cm in which the 808 Eurojoint Connector fits. The Eurojoint Connector should be equally long on both sides of the crack.
  • Use an industrial vacuum cleaner to remove any dust from the crack and the perpendicular cuts.
  • Place the 808 Eurojoint Connector in the perpendicular cuts.
  • Use 021 Euroblock Reno to fill the crack and the perpendicular cuts (see picture 2). A mixture of 021 Euroblock Reno and 846 Quartzsand can be used to fill large cracks.




Environment and health

Hazard Class : None.
Safety and environment : Keep out of reach of children. Do not eat, drink or smoke while processing the product. Only give completely empty containers for recycling. Material residues can be disposed of as household waste.


Articles

ArticleDefinitionPackagingEAN code
808Eurojoint ConnectorBox with 1000 strips8 710345 808217
