Step safety vinyl
Installation Guidance Note - Step
Surestep Fast Fit Installation
Installation Guidance Note - Surestep Digital Print
Forbo Seaming Sarlon, Eternal & Surestep Wood Installation Guide
Forbo Installation Guidance note - Chipboard & OSB Subfloors
Various
Forbo Vinyl Noviweld 671 Factsheet
Forbo Quickfit installation guide
Forbo Vinylbase Acoustic installation guide
Forbo Underfloor Heating Fact Sheet
Forbo Sarlibase Installation Guide
Forbo Ventilated Skirting Solutions for Damp Subfloors
Forbo Installation Guidance Note- Crack Inducement & Movement Joints
Download the installation instructions for our Step Safety Vinyl ranges here:
Wetroom
Installation Guidance Note - Surestep Laguna & Safestep Aqua
Forbo Installation Guidance Note Onyx+ - Section 1
Forbo Installation Guidance Note Onyx+ - Section 2
Forbo Installation Guidance Note Onyx+ - Section 3
Forbo Installation Guidance Note Onyx+ - Section 4
Forbo Onyx+ Installation Instructions
Adhesives
640 Eurostar Special
Very low VOC-emission floor covering adhesive with a high initial grab for the installation of sheet and tile PVC floor coverings. Emicode EC1, solvent-free, multi-purpose application, easy and safe to apply, favourable spreading capacity, high initial and final bond strength, roller-castor-chair resistant.
Suitable for:
Surestep R10
Safestep R11
Safestep R12
Wetroom R10
Article reference: | 640 |
Order Unit: | 12 kg |
Coverage: | up to 53m² |
640 Eurostar Special Safety Data Sheet
Welding Rods & Accessories
Vinylweld
After installation, Forbo's vinyl floorings can be hot-welded for functional, decorative and/or hygienic reasons. Forbo vinyl welds are available in a variety of colours and are suitable for Step, Wetroom, Eternal & Acoustic vinyl products.
Speckled weld also available for Surestep Original colours: 171262, 171082, 171222, 171962, 171032, 171992, 171952, 171732, 171422 & 171362
Order Unit: | 1 pce = 50 lm reel |
Colours: | multiple |

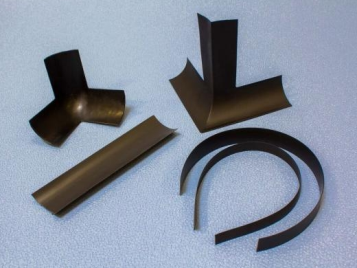

Wetroom Installation Accessories
Walls and floor coverings in wet rooms need to be well sealed and finished at the edges, corners and joints between walls and floors.
Subfloor and Underlay Systems
Forbo QuickFit Panels
The Forbo Quickfit system comprises self-adhesive MDF panels and moisture resistant, sound insulating Forbo foam.
Forbo Quickfit offers: A rapid, smooth finish. Quick and easy installation. No visible subfloor seams. Excellent moisture barrier. Easily removable. Improved impact sound insulation in combination with Forbo Foam (ΔLw = 23 dB according to EN-ISO 140-8 and 717-2).
Suitable for:
Surestep R10, Safestep R11, Safestep R12
Note: Quickfit is not suitable for use in areas expected to be subject to frequent wet spillages.
Order Unit: | 1 pack (3.6 m²) |
Gauge: | 7mm |
Width: | 1200mm x 600mm panels |
Forbo Foam
Polypropylene foam for use with Quickfit panels laminated with metallised foil. The foil top layer incorporates a self-adhesive overlap of 20 cm for secure seams.
Order Unit: | 1 roll (25lm) |
Gauge: | 4.0mm |
Width: | 1m |
Length: | 25lm |

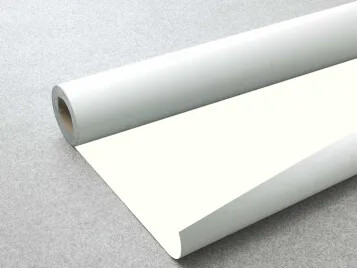

VinylBase
Acoustic underlay with 18 dB sound reduction.
Suitable for:
Surestep R10, Safestep R11, Safestep R12, Wetroom R10
Order Unit: | 1 roll |
Gauge: | 2.0 mm |
Width: | 2.0 m |
Length: | 35 lm |

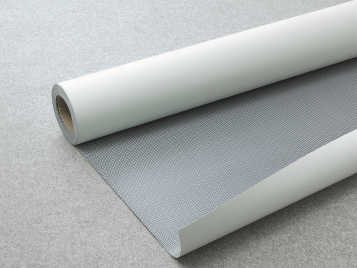

Sarlibase
Loose lay underlay system for damp or contaminated subfloors.
Suitable for
Surestep R10, Safestep R11, Safestep R12, Wetroom R10
Order Unit: | 1 roll (35 lm) |
Gauge: | 1.5 mm |
Width: | 2.0 m |
Length: | 35 lm |
