eurocol

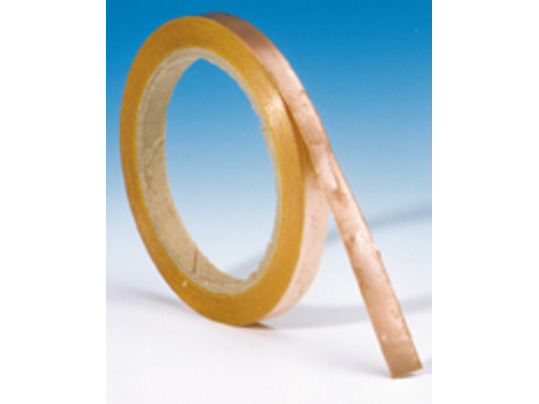

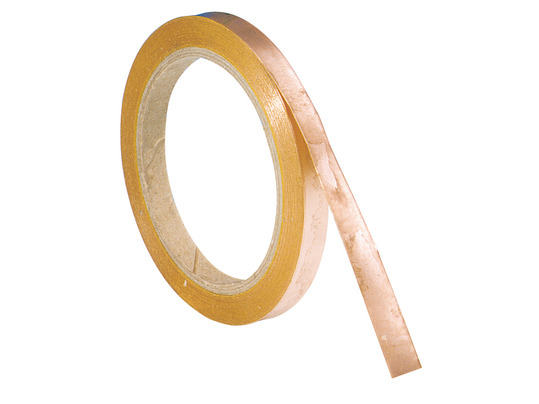

801 EUROSTRIP EC

801

Self-adhesive copper strip.

  • pdf-product-specification.pdf

    pdf-product-specification.pdf

Product Typification

Self-adhesive copper strip.
Basis : Electrolyte copper strip.
Dimensions : Length 20 m. Width 10 mm. Thickness 0,1 mm.

Product advantages:
  • Self-adhesive copper tape for electrically conductive preparation of standard subfloor before installation of electrically conductive floor coverings according to floor covering manufacturer's instructions.
  • Ensures transverse potential equalization according to existing standards.
  • For indoor use.
  • Easy application

Performances

Special quality : self adhesive.

Application

Application:
Self-adhesive copper strip to accomplish an earth connection when fixing conductive floor covering.

Working Process

Shelf Life : Minimum 36 Months, in unopened packaging.
Remarks : Technical information and safety data sheets of any laying materials and floor coverings used must be observed and the processing conditions must be complied with.
Make sure that the levelling compound under floor coverings is sufficiently thick.

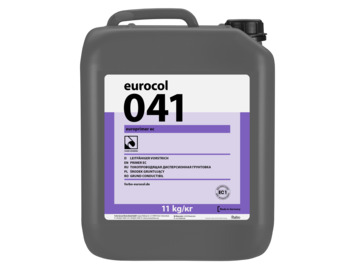

Eurocol 041 Europrimer EC reduces the absorbency of the substrate, therefore in the case of water vapour impermeable floor coverings, allow for correspondingly longer flash-off times for the adhesives.

* The mentioned values have been established in our laboratory and must be considered as guidelines in view of possible variations in climatic circumstances, subfloor compositions and layer thickness.

Substrate:
  • 801 Eurostrip EC is suitable for any type of subfloor that is clean, permanently dry and free from dust and grease.
  • In advance always seek our technical data sheets. In doubt about the application ask for technical advice.


User manual:
  • Apply on floor surfaces up to 30 m², at least 1 running metre of 801 Eurostrip EC on the with 041 Europrimer EC primed floor.
  • On larger surfaces use proportionally more 801 Eurostrip EC.
  • An electrician must connect the 801 Eurostrip EC to the earth connection.

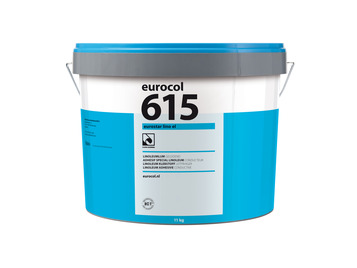

  • Use for the installation of a conductive floor covering the following conductive adhesives: 615 Eurostar Lino EC for conductive linoleum and 641 Eurostar Special EC for conductive vinyl, rubber, polyolefin and carpet.




Environment and health

Safety and environment : Keep out of reach of children. Do not eat, drink or smoke while processing the product. Only give completely empty containers for recycling. Material residues can be disposed of as household waste.


Articles

Article Definition Packaging EAN-code
801Eurostrip EC 20 m¹ roll8 710345 801010
