Series 6.1

Straight running belts l Pitch 50 mm (1.97 in)
Belts for medium to heavy-duty, hygiene-critical applications


Series 6.1 – Excerpt from Prolink Engineering Manual

Design characteristics

  • Wide modules and eyelets for less soiling
  • Hinges that open wide, wide channels on the underside and a continuous drive bar for an easy-to-clean design
  • robust design and smooth, cut-resistant surface (depending on material)
  • Special sprocket design with enhanced tooth engagement
    for excellent force transmission

Series 6.1 - Design characteristics

Basic data

Pitch 50 mm (1.97 in)
Belt width min.40 mm (1.57 in)
Width increments20 mm (0.8 in)
Hinge pinsMade of plastic (PE, PP, POM-MD, PBT)

Prolink Series 6.1 Basic Data EN

S6.1-0 FLT | 0 % Opening | Flat top

  • Closed, smooth surface
  • Flat top surface
  • Easy-to-clean

S6.1-0 FLT

S6.1-0 NTP | 0 % Opening | Nub top (round studs)

  • Closed surface and round studs
  • 6 % contact area
  • Nub top surface for good release of wet and sticky products
  • Easy-to-clean

S6.1-0 NTP

S6.1-0 CTP

  • Closed surface and pointed studs
  • Cone top surface pattern for superior grip
  • Easy-to-clean

S6.1-0 CTP

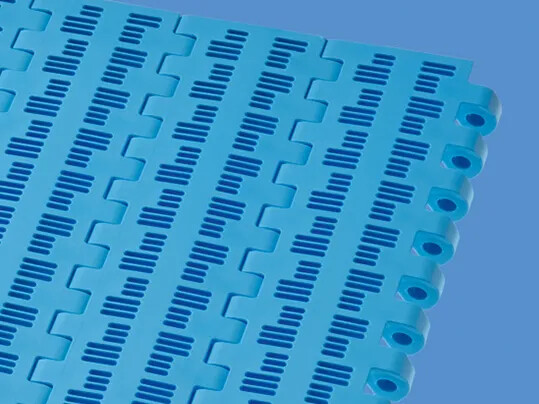

S6.1-21 FLT | 21 % Opening | Flat top

  • Open area (21 %) for excellent air circulation and drainage
  • 58 % contact area (Largest opening: 1.9 x 11 mm/0.07 x 0.43 in
  • Smooth surface
  • Easy-to-clean

S6.1-21 FLT

S6.1-23 FLT | 23 % Opening | Flat top

  • Open area (23 %) for excellent air circulation and drainage
  • 61 % contact area (Largest opening: 4.3 x 9.3 mm/0.17 x 0.37 in)
  • Smooth surface
  • Easy-to-clean

S6.1-23 FLT

S6.1-36 FLT | 36 % Opening | Flat top

  • Open area (36 %) for excellent air circulation and drainage
  • 20 % contact area (Largest opening: 11.8 x 15.2 mm/0.46 x 0.6 in)
  • Smooth surface
  • Easy-to-clean

S6.1-36 FLT

S6.1-0 FLT PSP | ProSnap

  • Quick-Release for easy, quick and toolless opening and closing of the belt
  • One pin solution for entire belt width

S6.1-0 FLT PSP

Pin Retained Rollers

For applications where low back pressure accumulation or product separation is required

S6 PRR

Sprockets

in different sizes with round or square sprocket bore

Series 6.1 - Sprockets

Profiles

in different heights and designs for inclines.

Series 6.1 - Profiles

Side guards

in different heights for retention of bulk products

Series 6.1 - Side guards

Hold Down Tabs

Hold Down Tabs for additional guiding

Series 6.1 - Hold Down Tabs

Prolink Series 6.1 - Video

Further Information

  • 888 Series 6.1 EN – Excerpt from Prolink engineering manual

    Series 6.1
    Excerpt from Prolink Engineering Manual

  • 889 EN Prolink ProSnap - Cuts downtime with one easy snap

    Prolink ProSnap
    Cuts downtime with one easy snap

  • Data sheet S6.1-0 FLT PSP EN

    S6.1-0 FLT PSP
    Data sheet
